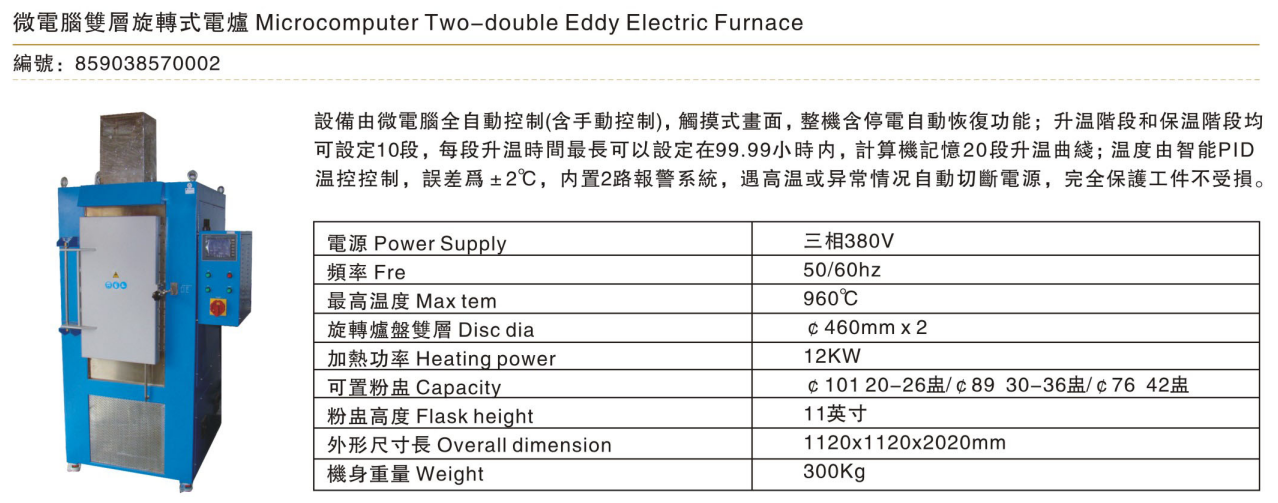

微电脑双层旋转式电炉 Microcomputer Two-double Eddy Electric Furnace

设备由微电脑全自动控制（含手动控制），触屏模式画面，整机含停电自动恢复功能；升温阶段和保温阶段均可设定10段，每段升温时间最长可以设定在99.99小时内，计算机记忆20段升温曲线；温度由智能PID温控控制，误差为±2℃，内置2路报警系统，遇高温或异常情况自动切断电源，完全保证工件不受损。

The equipment is automatically controlled by microcomputer (including manual control), touch screen mode screen, and the whole machine includes automatic recovery of power failure; 10 sections can be set in both heating stage and insulation stage, and the maximum heating time of each period can be set within 99.99 hours; the temperature control, the error is ± 2℃, 2 built-in alarm system is automatically cut off in case of high temperature or abnormal situation, completely ensuring that the workpiece is not damaged.

电源Power Supply：三相380V

频率Frequency：50/60HZ

最高温度Max tem：960℃

旋转炉盘双层Disc dia：φ460mmx2

加热功率Heating power：12KW

可置粉盅Capacity：φ101  20-26盅/φ89  30-36盅/φ76  42盅

粉盅高度Flask height：11英寸

外形尺寸长Overall dimension：1120x1120x2020mm

机身重量Weight：300Kg
